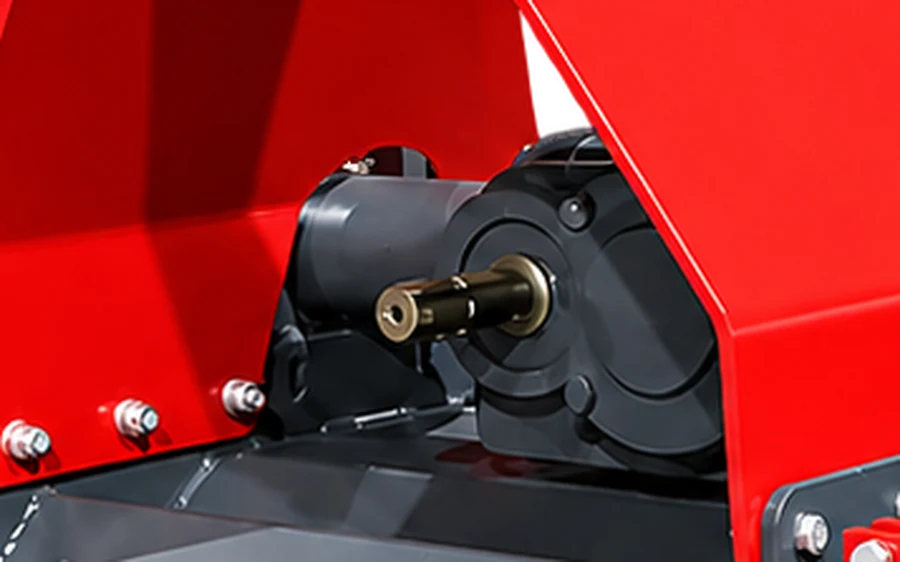

Heavy-Duty Gearbox
Dual-speed gearbox on the rotor drive, built for high torque and long service life.
- Dual-speed gearbox
- 540 / 1000 RPM PTO input
- Tractor PTO driven

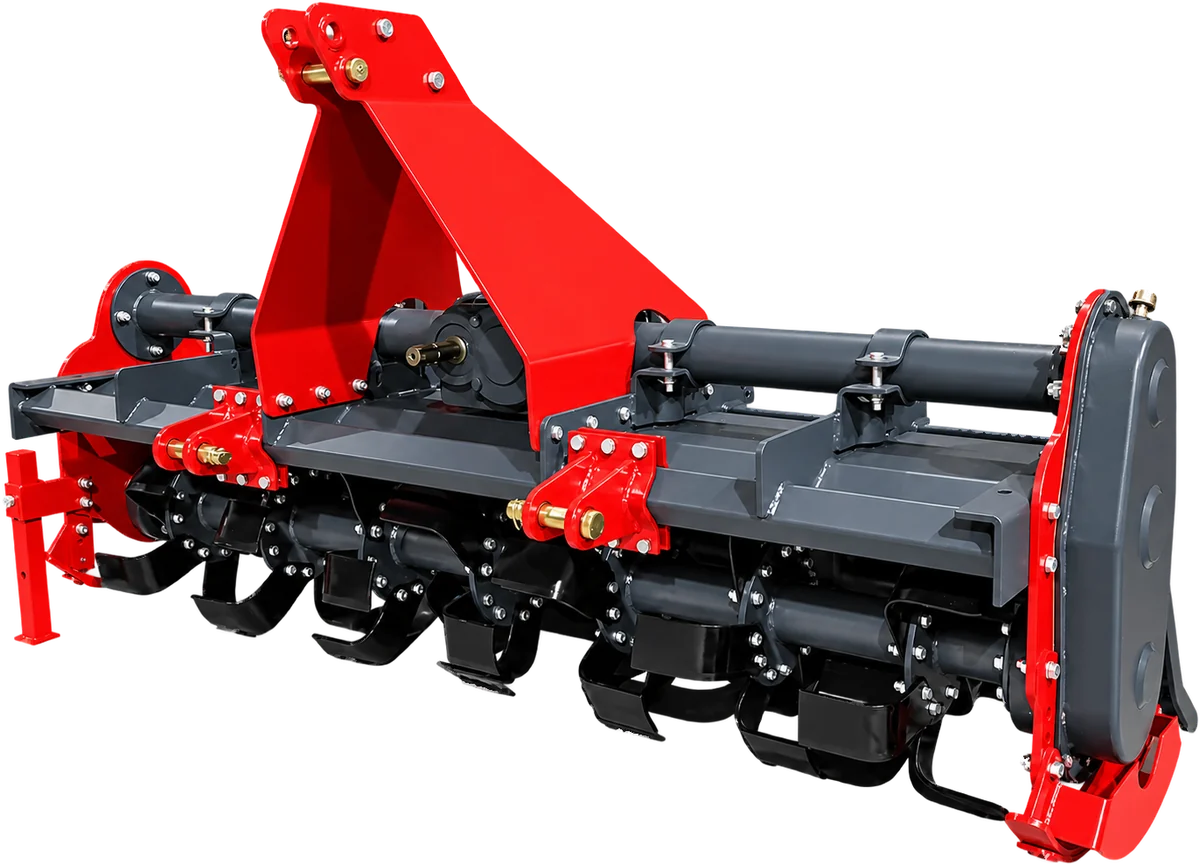

Heavy-Duty Rotary Tillers5–12 ft
Built to
break ground.
Tractor-matched heavy-duty rotavators engineered for serious field preparation — from 5 ft to 12 ft. Each machine is built to order, for maximum strength, reliability and performance.
The WINNERS rotavator range is manufactured by Brohawk Exports and marketed and sold by Winners Rotavator.
45–90+ HPTractor matching
540 / 1000 RPMPTO speed
Gear driveSide transmission
Category II3-point hitch
L / CBoron steel blades
5–12 ftNominal sizes
Model Range
Choose your model. Right size. Right match.
Nominal sizes from 5 to 12 ft, matched to tractors from 45 HP to 90+ HP.
BW5H
5 ft
- 45+ HP
- 36 blades
- 2 damper springs
View model →
BW6H
6 ft
- 55+ HP
- 42 blades
- 2 damper springs
View model →
BW7H
7 ft
- 65+ HP
- 48 blades
- 4 damper springs
View model →
BW8H
8 ft
- 75+ HP
- 54 blades
- 4 damper springs
View model →
BW10H
10 ft
- 90+ HP
- 66 blades
- 4 damper springs
View model →
BW12H
12 ft
- 90+ HP
- Made to order
- Details on request
View model →
Engineering
Built from the ground up.
Photographs taken at the works. Every WINNERS rotavator is assembled around the same core mechanical package.

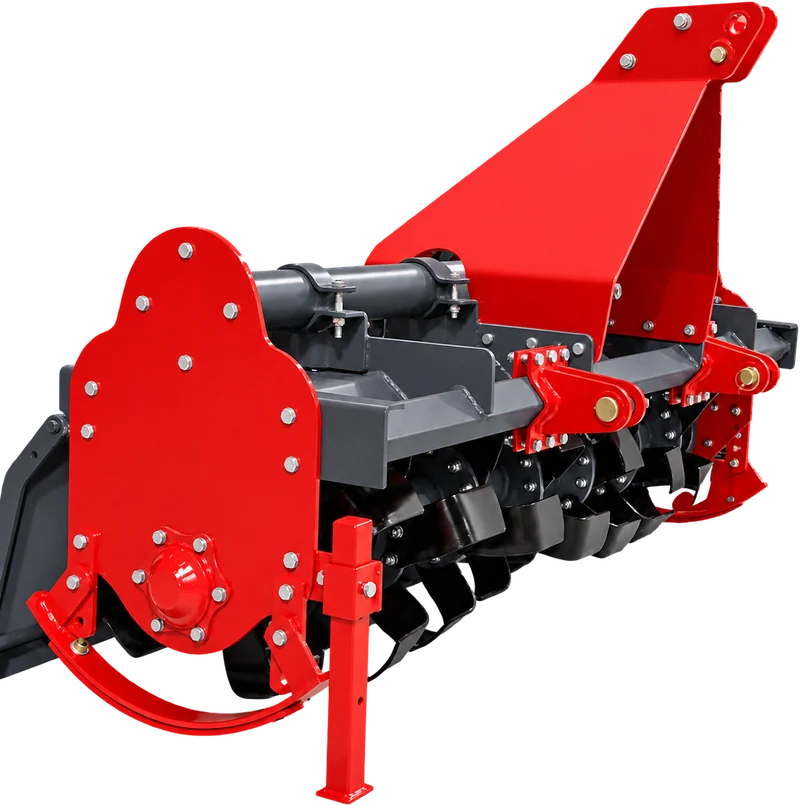

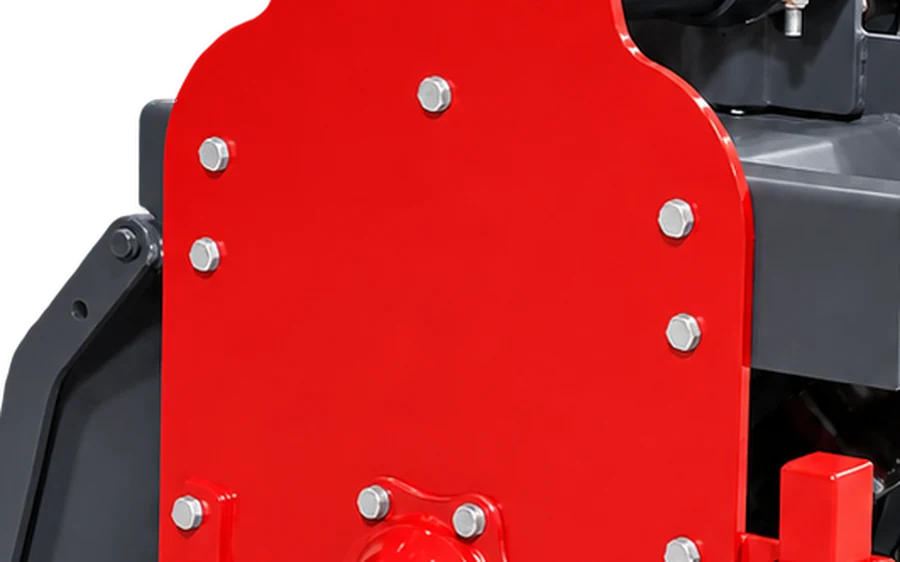

Side Transmission
Power reaches the rotor through an enclosed gear-drive side transmission for steady, efficient transfer.
- Gear drive
- Enclosed side transmission
- Built for continuous work

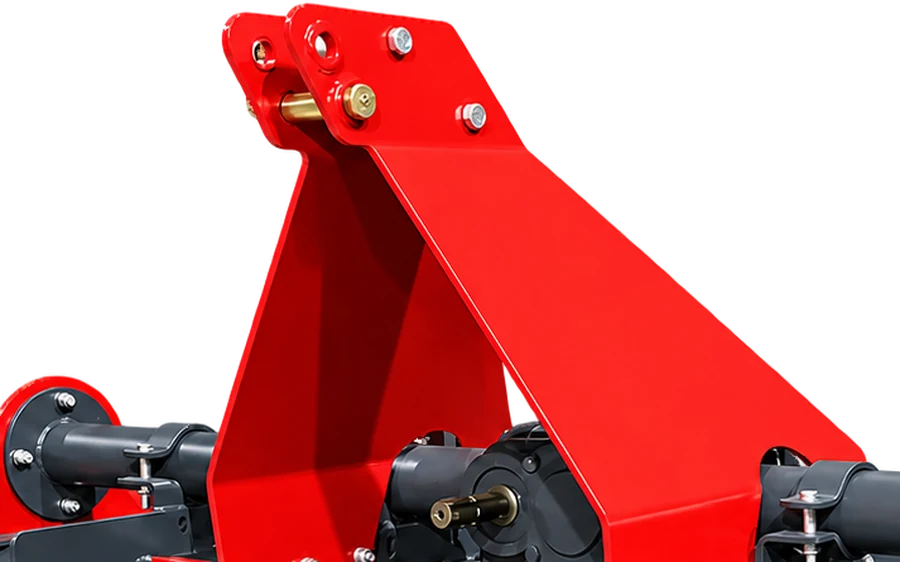

Reinforced Frame
Heavy-duty frame and top mast built for rigidity and stress resistance in hard field conditions.
- Heavy-duty structure
- Reinforced top mast
- Built for long life

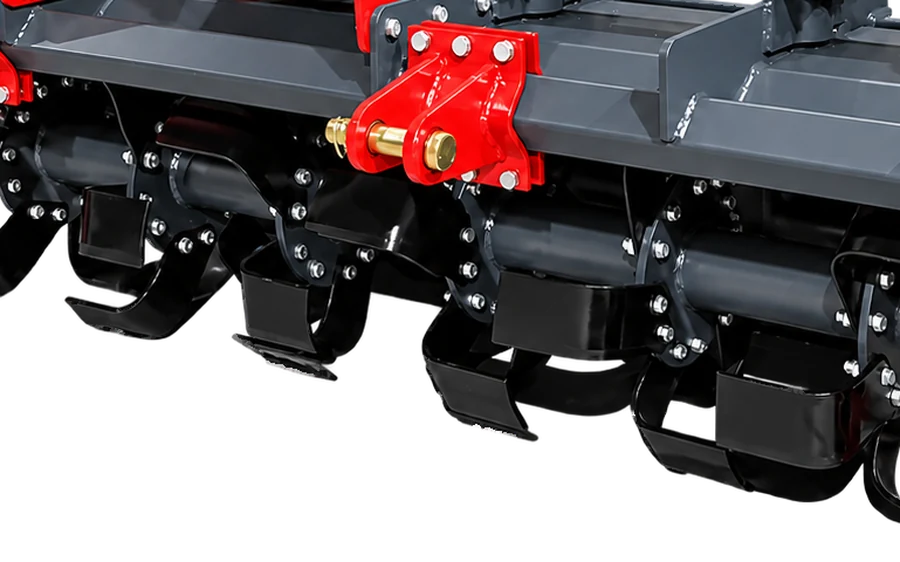

High-Strength Blades
Boron-steel tillage blades cut, mix and pulverize soil and incorporate crop residue.
- Boron steel blades
- L / C blade options
- Replacement blades available

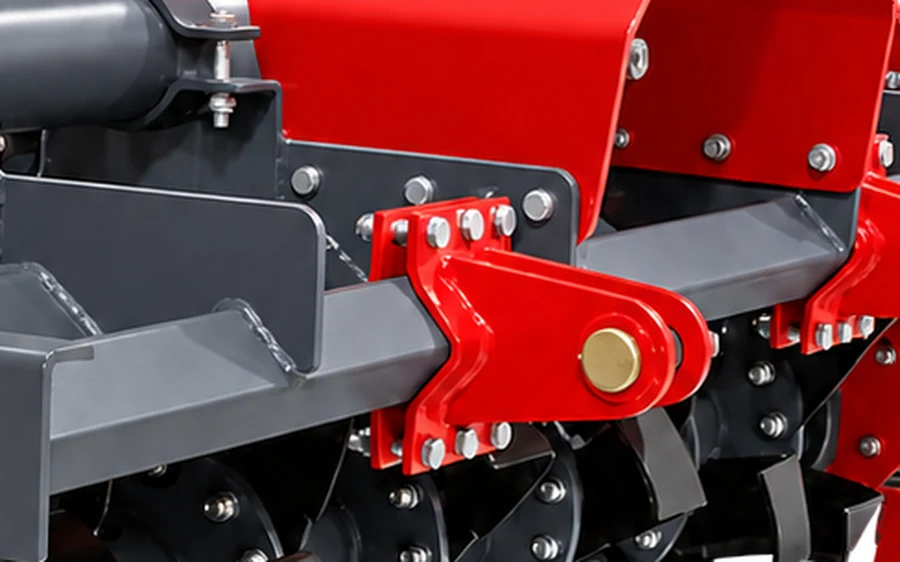

Rear Board & Spring Control
An adjustable rear board on damper springs levels the worked soil and absorbs shock in the field.
- Adjustable rear board
- 2 or 4 damper springs by model
- Better levelling and stability

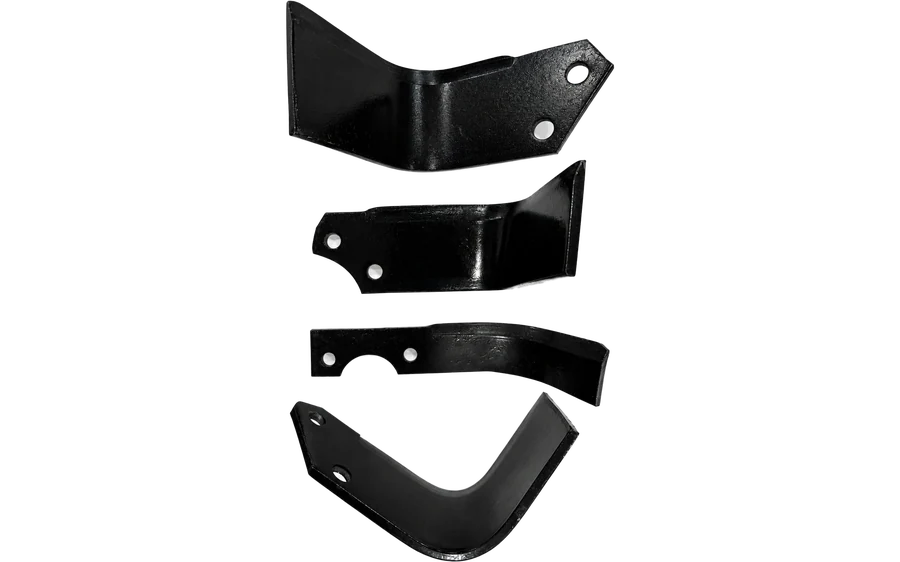

Blade Options
L-type and C-type boron-steel blades are produced in several flat sizes and hole patterns.
- L type and C type
- Multiple hole pitches
- Made-to-order sizes
Comparison
Compare without guessing.
Verified specifications across the range.
| Specification | BW5H | BW6H | BW7H | BW8H | BW10H | BW12H |
|---|---|---|---|---|---|---|
| Suitable tractor | 45+ HP | 55+ HP | 65+ HP | 75+ HP | 90+ HP | 90+ HP |
| Tillage width | 59 in / 149 cm | 69 in / 175 cm | 79 in / 200 cm | 87 in / 220 cm | 114 in / 291 cm | On request |
| Overall width | 70 in / 179 cm | 80 in / 204 cm | 90 in / 230 cm | 98 in / 249 cm | 126 in / 320 cm | On request |
| Approx. weight | 410 kg | 442 kg | 484 kg | 536 kg | 640 kg | On request |
| Blade count | 36 | 42 | 48 | 54 | 66 | On request |
| Damper springs | 2 | 2 | 4 | 4 | 4 | On request |
| PTO speed | 540 / 1000 RPM | 540 / 1000 RPM | 540 / 1000 RPM | 540 / 1000 RPM | 540 / 1000 RPM | Confirm with order |
| Transmission | Gear drive | Gear drive | Gear drive | Gear drive | Gear drive | Confirm with order |
| Hitch | Category II 3-point hitch | Category II 3-point hitch | Category II 3-point hitch | Category II 3-point hitch | Category II 3-point hitch | Confirm with order |
| Blade options | L / C boron steel | L / C boron steel | L / C boron steel | L / C boron steel | L / C boron steel | Confirm with order |
Scroll the table sideways to compare every model. BW12H is a made-to-order model — its detailed dimensions are confirmed with the order.
All models use a dual-speed gearbox, gear-drive side transmission, boron-steel L or C blades and a Category II three-point hitch. Further detail for a specific machine is confirmed with the quotation.

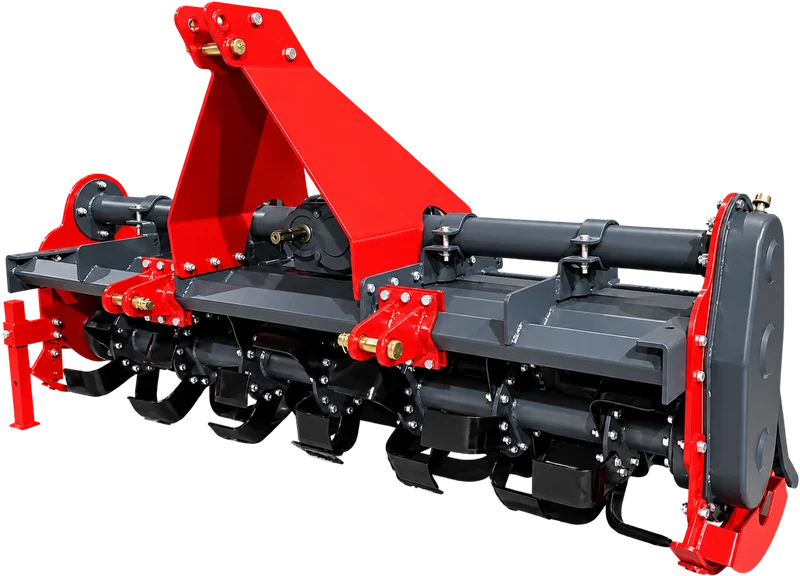

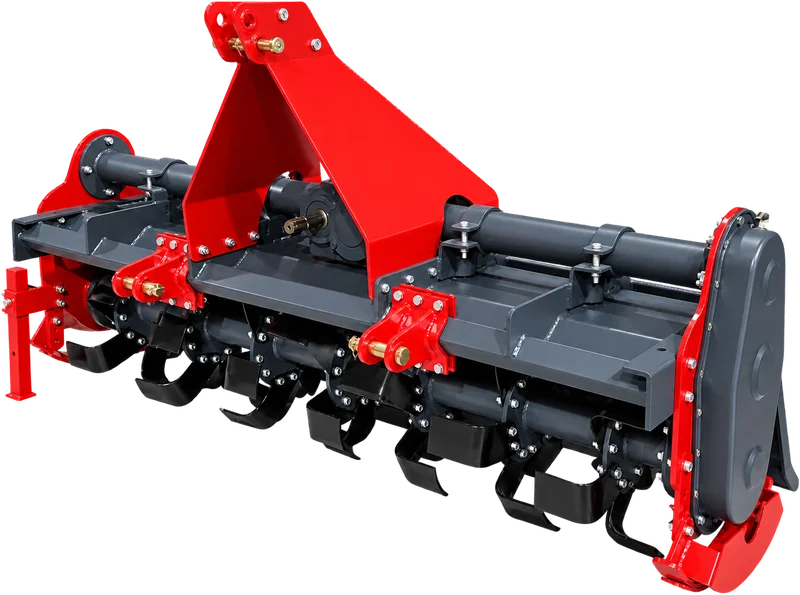

Gallery
Real machines. Real results.
Applications
One machine, many field jobs.
Seedbed Preparation
Prepare a workable seedbed ahead of sowing in one or two passes.
Soil Pulverization
Break clods and refine soil structure for more uniform fields.
Crop-Residue Mixing
Incorporate crop residue into the soil after harvest.
Weed Control
Disturb and bury weeds mechanically between crops.
Pre-Sowing Land Preparation
Level and condition land before planting operations.
General Farming & Horticulture
Dry-soil and normal field preparation across general farm and horticultural use.
Ready to upgrade your field performance?
Tell us your tractor and field conditions and we will match the right working width.
